VARIOVAC | Traysealer
The Traysealer technology packaging machines of VARIOVAC meet the highest quality and hygiene standards. They are characterized by their linear style and high-quality stainless steel construction.
See next all the models with their features.
Contact us to receive a customized quote for your needs.
Tel. +35722526262
email: finde.trading@cytanet.com.cy
Description
Semi-automatic and automatic heat-sealing machines from Variovac
Rotarius
- The Rotarius is a semi-automatic heat sealing machine that packs fresh and frozen food in containers
- Made entirely of stainless steel, with CE certificate and IP65 protection
- The unique two-mould rotating bank system increases productivity without increasing labour costs
- Faster machine operation than that of simple conventional semi-automatic drawer machines
| Technical Specifications | |
| means of operation | Siemens S7 operation via touch screen |
| electrical connection | 3ph, 400V |
| compressed air | 6 bar – 28 lt / min. |
| circles | 4-8 cycles/minute depending on welding, vacuum, gas |
| vacuum pump | Busch 63 m³/h |
| film diameter | max. 300 mm |
| required space | 1,6 m² |

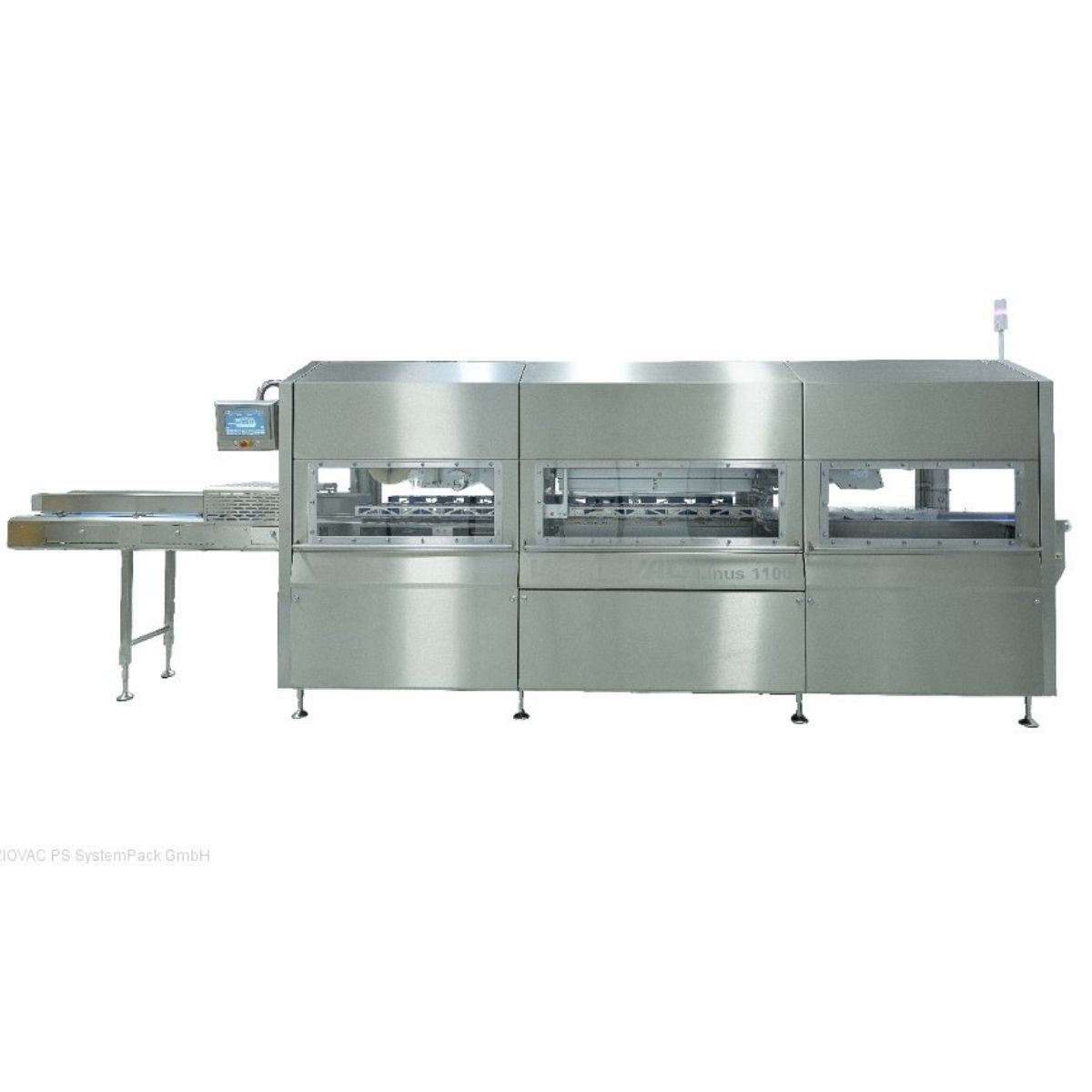

Linus
- Fully automatic heat sealing machine that packs fresh and frozen food in containers
- Made entirely of stainless steel, with CE certificate and IP65 protection
- Possibility of simple heat sealing, gas injection packaging (MAP) and Skin packaging
- Possibility of external or internal film cutting after heat sealing of the container
- Welding head and container insert change without the use of tools
- Welding head from 2 to 5 container positions
| Technical Specifications | |
| machine length | up to 3700 mm |
| film width | up to 355mm for external cutting up to 315mm for internal cutting |
| Capacity | 10 to 15 cycles/min depending on the welding, vacuum, gas |
| head length | usable space from 500mm to 1000mm |
| container height | min. 20mm max. 200mm |
Additional information
| Supplier | Variovac |
|---|
