HENNEKEN | Tumblers
Meat processing tumblers from the Henneken company. See next all the models with their features…
Contact us to receive a customized quote for your needs.
Tel. +35722526262
email: finde.trading@cytanet.com.cy
Description
Technical specifications per model.
Type B
| Type | Capacity | Revolutions/minute | Power | Width | Length | Height |
|---|---|---|---|---|---|---|
| B1 | 650 ltr | 2 – 10 | 2,4 kW | 980 mm | 1.900 mm | 1.600 mm |
| B2 | 900 ltr | 2 – 10 | 2,4 kW | 1.130 mm | 1.930 mm | 1.675 mm |
| B3 | 1.200 ltr | 2 – 10 | 2,8 kW | 1.130 mm | 2.225 mm | 1.675 mm |
| B4 | 1.500 ltr | 2 – 10 | 3,5 kW | 1.220 mm | 2.415 mm | 1.720 mm |
| B5 | 2.100 ltr | 2 – 10 | 4,7 kW | 1.360 mm | 2.850 mm | 1.790 mm |
| B6 | 3.000 ltr | 0,5 – 10 | 4,7 kW | 1.590 mm | 2.955 mm | 2.100 mm |
| B4000 | 4.000 ltr | 0,5 – 10 | 5,7 kW | 1.590 mm | 3.585 mm | 2.130 mm |
| B7 | 4.300 ltr | 0,5 – 10 | 7,2 kW | 1.620 mm | 3.765 mm | 2.145 mm |
| B8 | 5.500 ltr | 0,5 – 10 | 10,4 kW | 1.820 mm | 3.885 mm | 2.240 mm |
| B6000 | 6.000 ltr | 0,5 – 10 | 10,4 kW | 1.820 mm | 3.885 mm | 2.240 mm |
| B7000 | 7.000 ltr | 0,5 – 10 | 10,4 kW | 1.820 mm | 4.385 mm | 2.240 mm |
| B10 | 8.400 ltr | 0,5 – 10 | 16,7 kW | 2.000 mm | 4.670 mm | 2.440 mm |
| B11 | 10.000 ltr | 0,5 – 10 | 21,0 kW | 2.200 mm | 4.755 mm | 2.635 mm |
| B12 | 12.000 ltr | 0,5 – 10 | 30,0 kW | 2.350 mm | 4.945 mm | 2.785 mm |

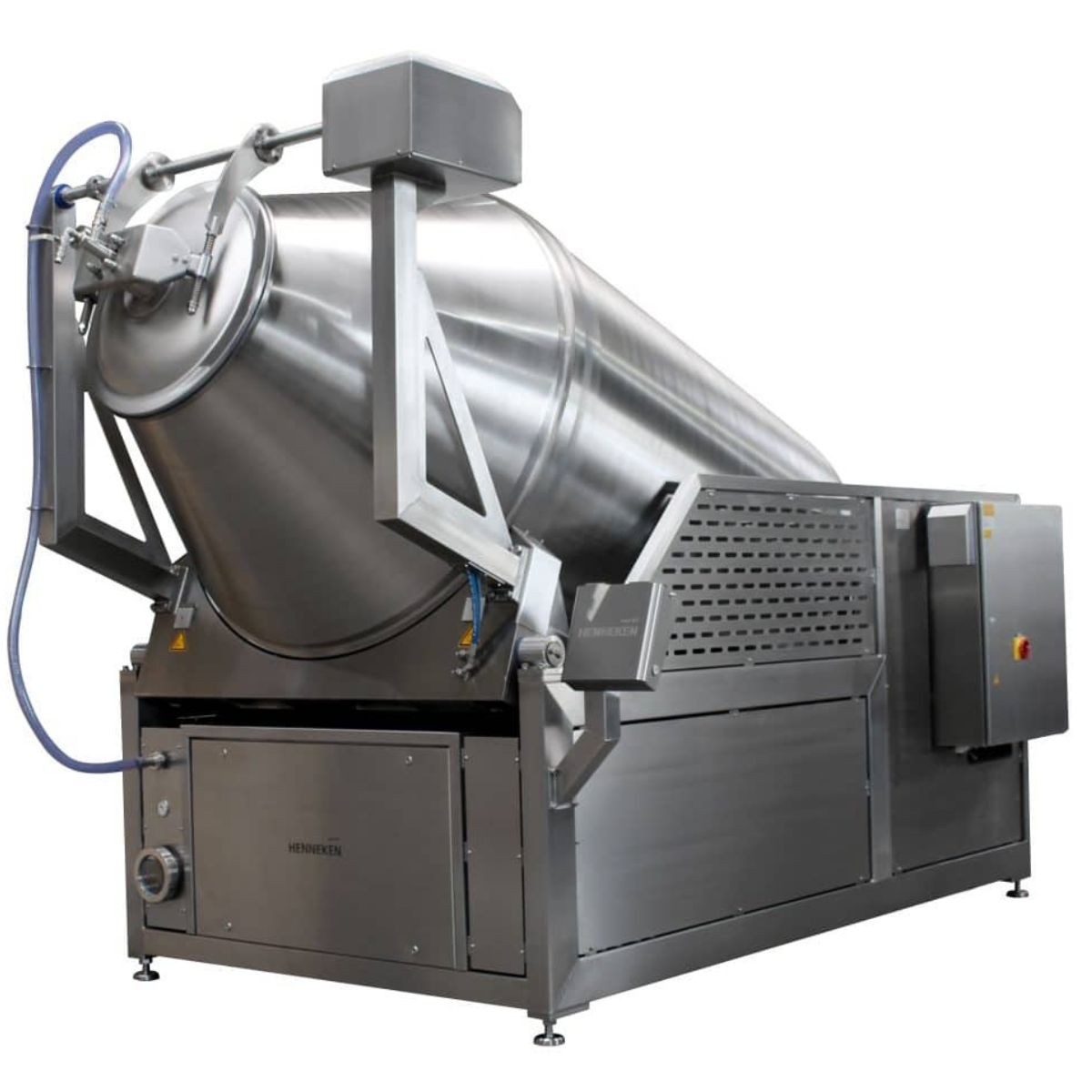

Type R
| Type | Capacity | Revolutions/minute | Power | Width | Length | Minimum height | Maximum height |
|---|---|---|---|---|---|---|---|
| R3200 | 3.200 ltr | 0,5 – 10 | 9 kW | 2.180 mm | 3.270 mm | 2.640 mm | 3.370 mm |
| R4400 | 4.400 ltr | 0,5 – 10 | 14 kW | 2.180 mm | 4.410 mm | 2.640 mm | 3.600 mm |
| R6400 | 6.400 ltr | 0,5 – 10 | 18 kW | 2.430 mm | 4.300 mm | 2.910 mm | 3.700 mm |
| R10000 | 10.000 ltr | 0,5 – 10 | 33 kW | 2.430 mm | 5.500 mm | 3.500 mm | 4.650 mm |

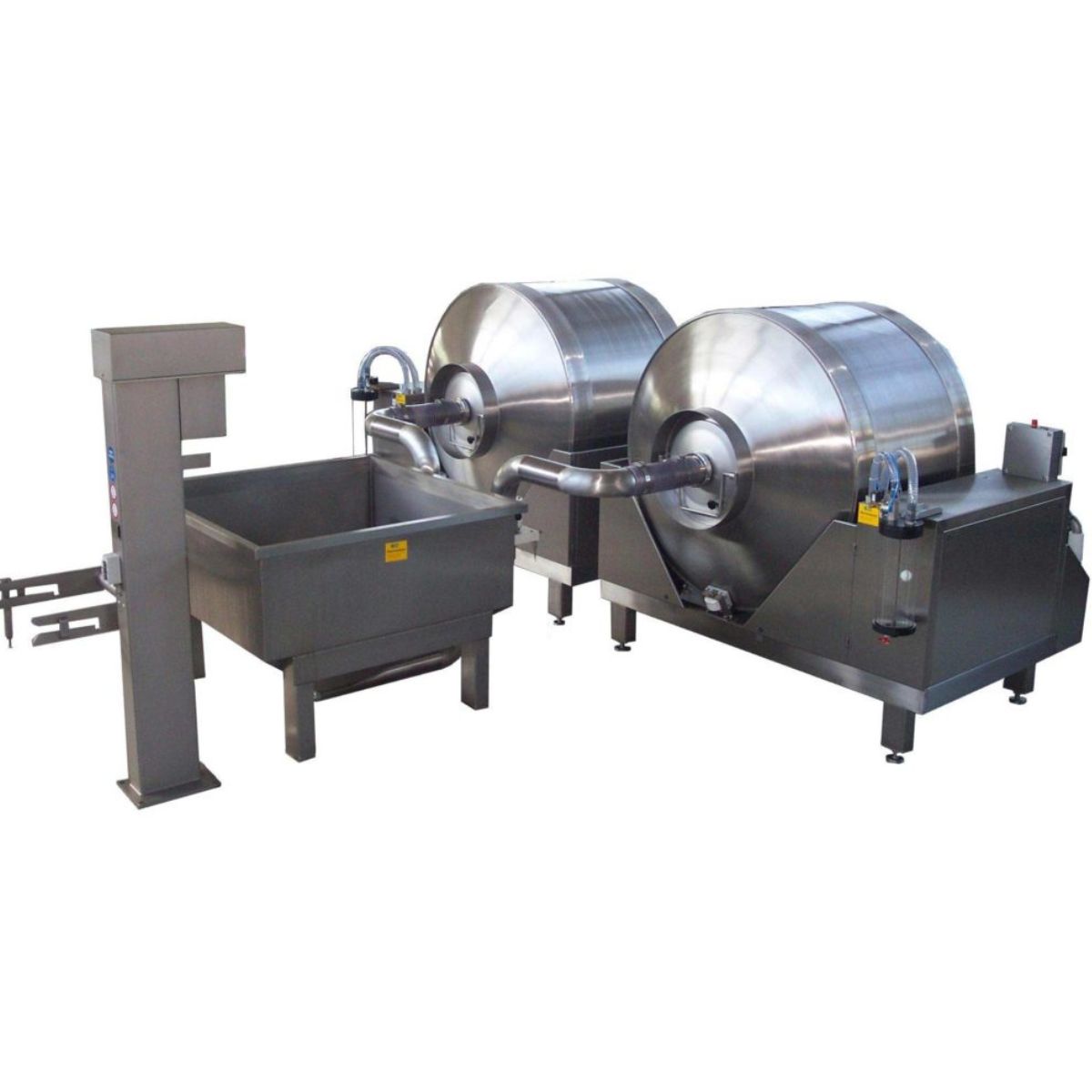

Type C
| Type | Capacity | Revolutions/minute | Power | Width | Length | Height |
|---|---|---|---|---|---|---|
| C0 | 1.800 ltr | 1 – 10 | 3,5 kW | 2.180 mm | 1.710 mm | 1.890 mm |
| C1 | 2.850 ltr | 1 – 10 | 4,7 kW | 2.370 mm | 1.980 mm | 2.180 mm |
| C2 | 3.650 ltr | 1 – 10 | 6,0 kW | 2.550 mm | 2.040 mm | 2.280 mm |
| C3 | 4.600 ltr | 1 – 10 | 11,0 kW | 2.805 mm | 2.090 mm | 2.390 mm |
| C4 | 6.500 ltr | 1 – 10 | 12,5 kW | 2.280 mm | 2.690 mm | 2.390 mm |
| C5 | 8.750 ltr | 1 – 10 | 21,0 kW | 3.280 mm | 2.810 mm | 2.650 mm |
| C6 | 11.000 ltr | 1 – 10 | 30,0 kW | 3.280 mm | 3.310 mm | 2.690 mm |

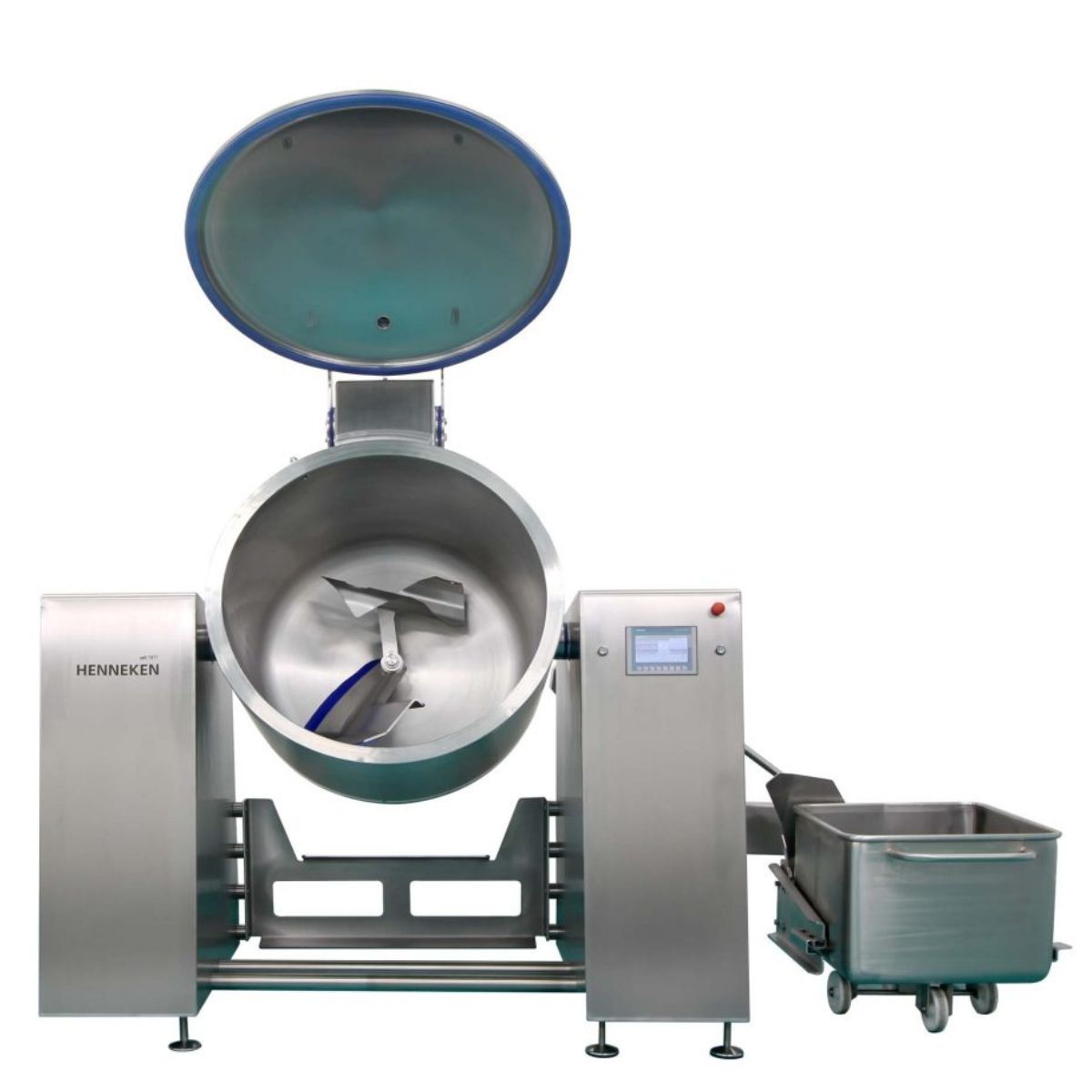

Type CVM
| Type | Capacity | Revolutions/minute | Power | Length | Width | Height |
|---|---|---|---|---|---|---|
| CVM 150 (C) | 150 ltr | 3 – 20 | 2.5 (3.5) kW | 1,360 (1,410) mm | 950 (1,640) mm | 1,550 (2,210) mm |
| CVM 250 (C) | 250 ltr | 3 – 20 | 2.5 (3.5) kW | 1,460 (1,540) mm | 950 (1,870) mm | 1,580 (2,310) mm |
| CVM 350 (C) | 350 ltr | 3 – 20 | 3 (4) kW | 1,560 (1,690) mm | 950 (1,990) mm | 1,610 (2,430) mm |
| CVM 600 (C) | 600 ltr | 3 – 20 | 5 (7) kW | 2,140 (3,100) mm | 1,290 (2,290*) mm | 2,000 (2,820) mm |
Additional information
| Supplier | Henneken |
|---|
