RAYMANTECH | X-RAY Detectors

Description

X-ray Inspection detects physical objects that cannot be visually identified. Unlike traditional metal detectors, X-ray technology is able to detect metal contaminants (less than one millimeter (1mm)) as well as non-metal contaminants (hard plastic, hard rubber, bones, ceramics, glass, etc.) in processed foods. stones etc.)).

The inspection is not affected by temperature, humidity, vibration, salt content, etc. Applications are constantly expanding for this powerful technology, which is not only used for dirt detection. In addition, defects in shape, quantity and other aspects are detected. Consequently, X-ray has become the new safety standard for the food industry.

X-ray technology foreign particle detectors.

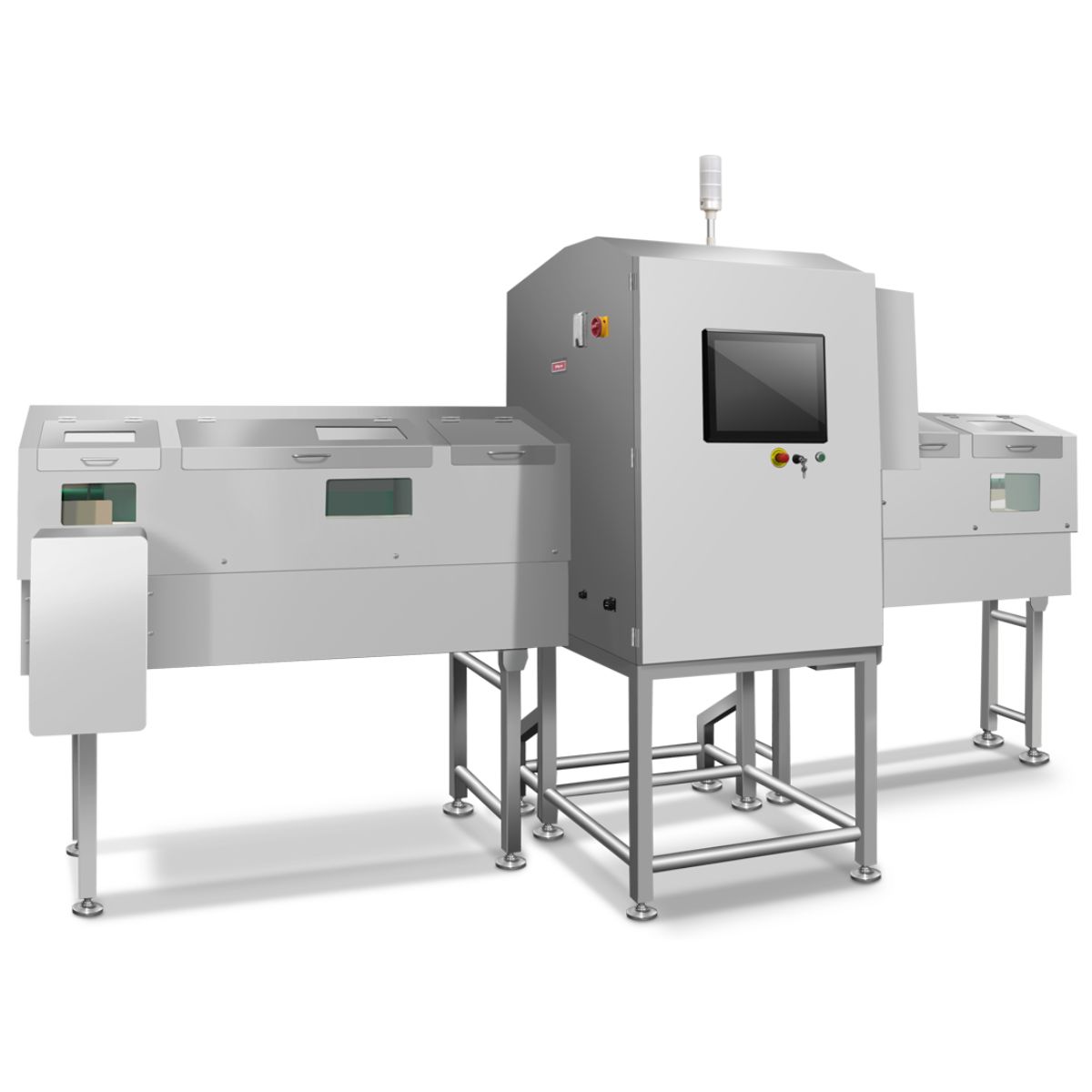

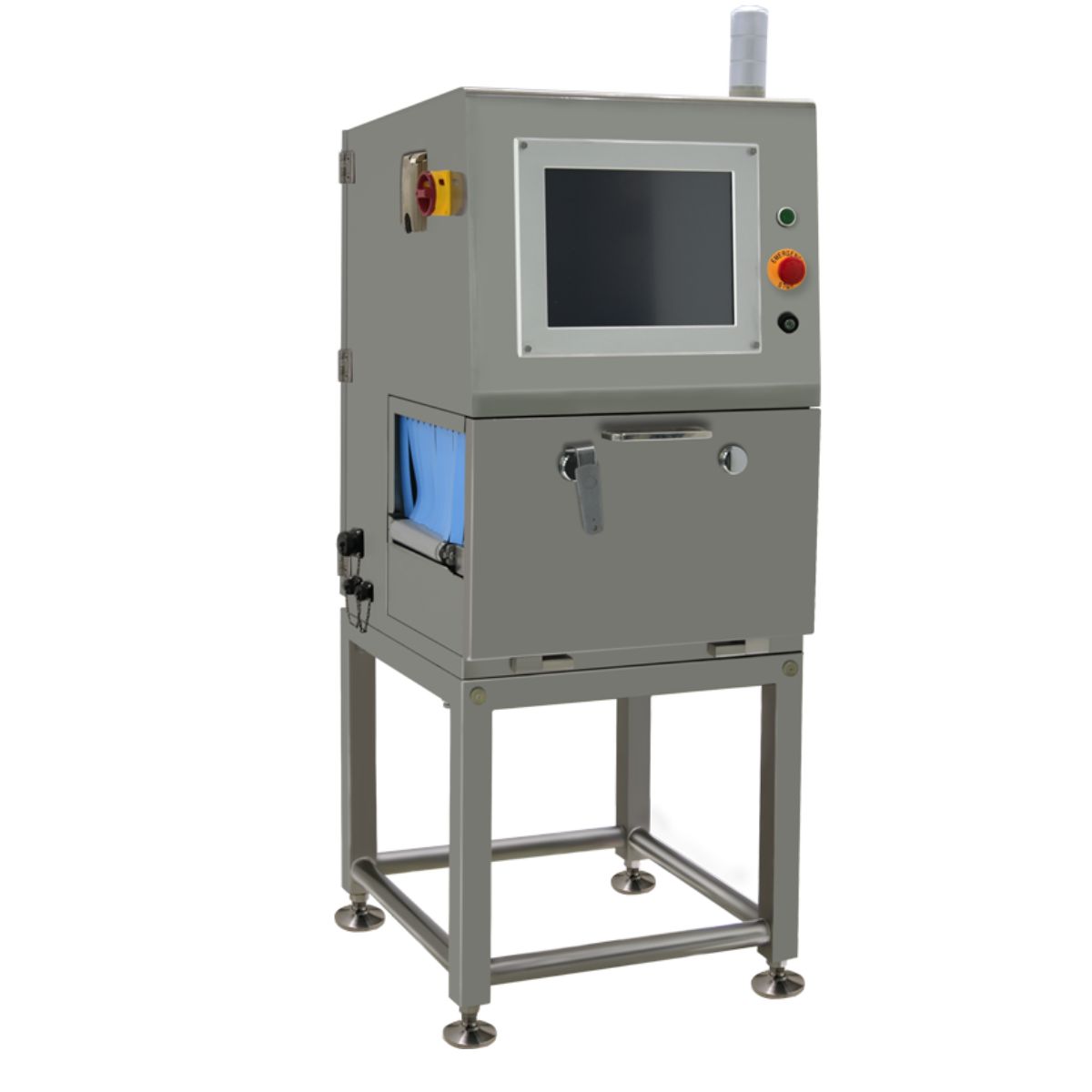

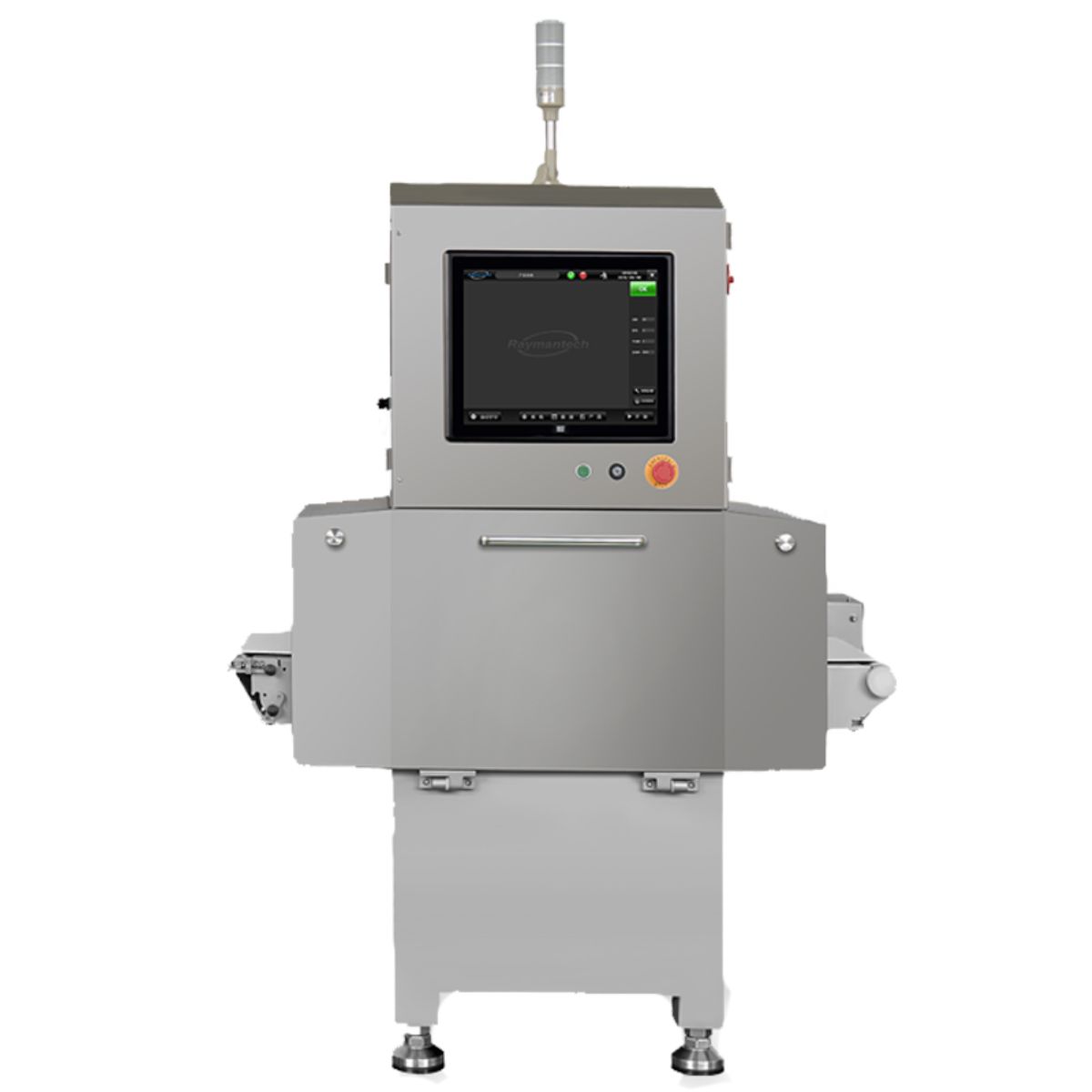

Model	IXE	RXI	RXP	RXI BULK
Ισχύς X-ray	Max. 65kV, 80W	Max.80kW,210W (RXI 2410 ,4016) Max. 120kV,350W (RXI 4030, 5030SH, 6030SH)	Max. 120kV, 480W	Max. 80kV, 350W
Control width	180 mm (IXE 1815) 280 mm (IXE 2815) 380 mm (IXE 3815)	240 mm (RXI2410) 400 mm (RXI 4016,4030) 500 mm (RXI 5030SH) 600 mm (RXI 6030SH)	160 mm	400 mm (RXI 4010BHD) 600 mm (RXI 6010BHD)
Control height	150 mm	100 mm (RXI 2410) 160 mm (RXI 4016) 300 mm (RXI 4030, 5030SH, 6030SH)	260 mm	50 mm
Conveyor belt speed	5-60 m/min	10-60 m/min (RXI 2410, 4016, 4030) 10-40 m/min (RXI5030SH, 6030SH)	10-90 m/min	120 m/min
Interface	LAN port, USB port	LAN port, USB port	LAN port, USB port	LAN port, USB port
Operating system	Windows Pro	Windows Pro	Windows Pro	Windows Pro
Operating temperature	0-40 °C	0-40 °C	0-40 °C	0-40 °C
Maximum operating humidity level	30-90%	30-90%	30-90%	30-90%
X-ray protection	Curtains	Curtains	Protective tunnel	Protective tunnel
Discard operations	Audible and visual, belt stop (optional dump)	Audible and visual, belt stop (optional dump)	High speed piston (requires 0.6-0.8 Mpa air)	48 air nozzles (RXI 4010) 72 air nozzles (RXI 6010)
X-ray emission	<1μSv/h (CE Standard)	<1μSv/h (CE Standard)	<1μSv/h (CE Standard)	<1μSv/h (CE Standard)
