ABM | Patty former machines
Production machines for burgers, kebabs and meatballs by ABM.
See next all the models with their features.
Contact us to receive a customized quote for your needs.
Tel. +35722526262
email: finde.trading@cytanet.com.cy
Description
See next all the models and their specifications:
 |  |  |  | |

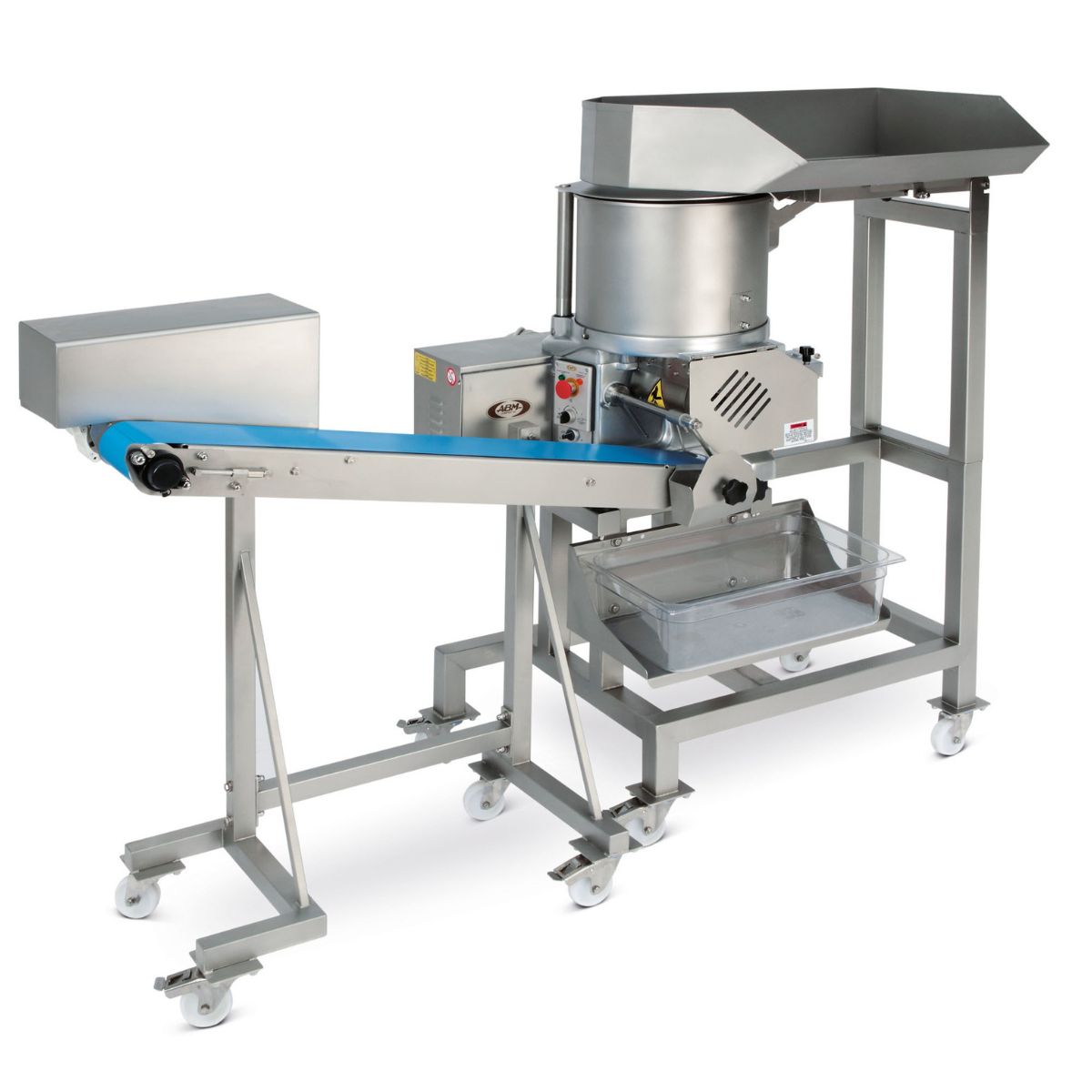

| Models | F 1000 | F 2000 / 3000 | F 4000 (Possibility of spraying water on the matrix as an option) | HD 4000 (Possibility of spraying water on the matrix as an option) |
| Bucket capacity | 16 lt | 20 lt (40 lt optional) | 20 lt (40 lt optional) | 30 lt + 80 lt additional hopper |
| Maximum production volume | 1560 pcs/h with single gauge 3120 pcs/h with double gauge | 2000 pcs/h with single gauge (F2000) 3000 pcs/h with single gauge (F3000) | 4000 pcs/h with single gauge 8000 pcs/h with double gauge | 4000 pcs/h |
| Maximum size of a single gauge | 130 mm | 130 mm | 130 mm | 130 mm |
| Maximum size of double Kalimber | 55 mm | 55 mm | 55 mm | 55 mm |
| Paper dimension | 135 X 135 mm (optional equipment) | 135 X 135 mm (optional equipment) | 135 X 135 mm (optional equipment) | 135 X 135 mm (optional equipment) |
| Output strap | 390 mm (900 mm optional) | 390 mm (900 mm optional) | 390 mm (900 mm optional) | 1127 mm |
| Foot switch | Optional | Optional | Optional | Basic equipment |
| Pneumatic output arm cleaning mechanism | Optional | Optional | Optional | Basic equipment |
| Motor power | 0,55 kw | 0,75 kw | 0,75 kw | 0,75 kw |
Additional information
| Supplier | ABM |
|---|
